ADT680W Digital Pressure Gauge – Gauge Pressure Data Logging

ADT680W Digital Pressure Gauge – Gauge Pressure Data Logging

Simplify your gauge pressure measurements with our economical digital pressure gauge, offering reliability and precision at a fraction of the cost of other solutions.

SKU: ADT680W

$1,313.00$6,587.00

Add to Quote

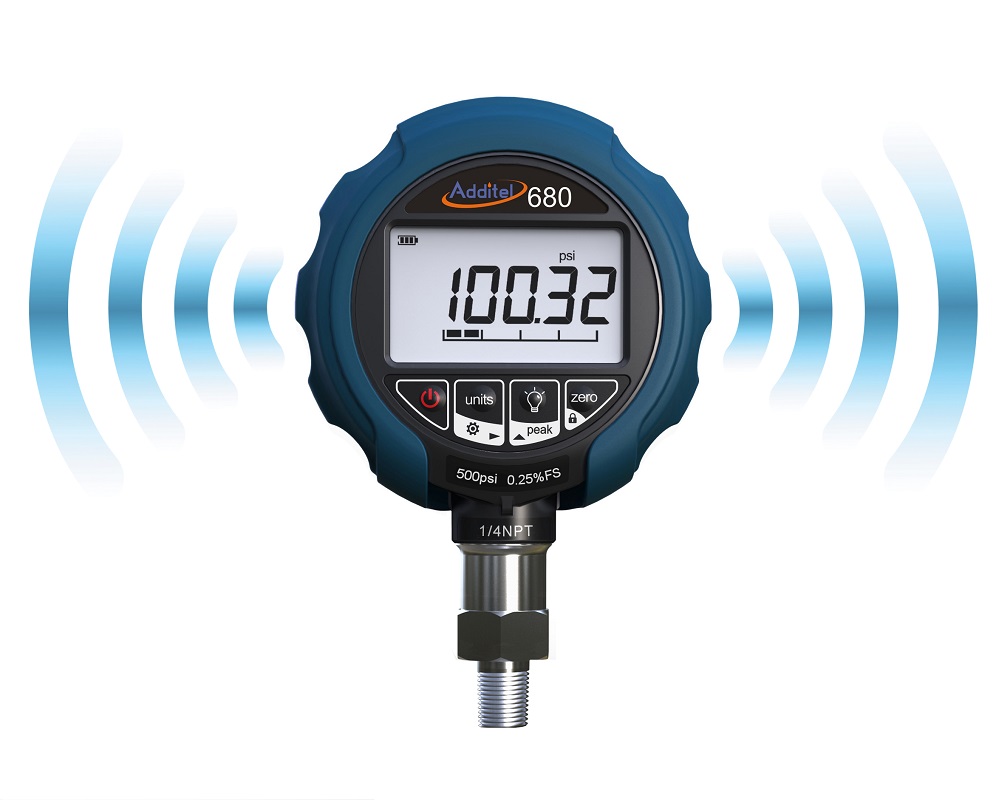

The Additel ADT680W digital pressure gauges, provide an accurate, reliable and economical solution for a wide range of pressure applications. Rugged and IP67 rated they are ideal for all field and lab testing purposes. With accuracy choices of 0.25%, 0.1% % & 0.05% of full scale and gauge pressure ranges from Vacuum to 420 MPa, there are options to meet all budgets and service requirements.

ADT680W incorporates wireless datalogging and can be used with the free Additel Land software for setting up and retrieving results from the gauge or be used with optional Log II wireless software for real time logging requirements. Wireless communication allows multiple gauges to be connected to PC simultaneously.

The ADT680 digital pressure gauge is supplied with ISO17025 accredited calibration certificate. Zedflo is a NATA accredited facility and can provide accredited calibration for these products.

The ADT680W has options for measuring gauge and compound pressure.

View Non Data Logging Versions



  • Pressure ranges to 420 MPa (60,000 PSI)
  • 0.05%, 0.1% or 0.25% full scale accuracy
  • Up to 13 selectable pressure units, 6 customized definition engineering units
  • On board data logging (ADT680W)
  • Data Storage of 140,000 records (each record includes date, time, pressure and ambient temperature)
  • Wireless communications (ADT680W)
  • Optional real time data logging (ADT680W)
  • Large, easy to read display with 5-digit resolution
  • Backlit display
  • Icon-based menu
  • Display flash warning when pressure exceeds 120% of FS
  • IP67
  • ISO 17025 accredited calibration certificate included
  • Precision pressure measurement
  • Field gauge and switch calibration
  • Pressure safety valve (PSV) testing
  • Pressure regulator testing
  • Hydrotesting
  • Gas pressure testing
  • Pressure data logging
