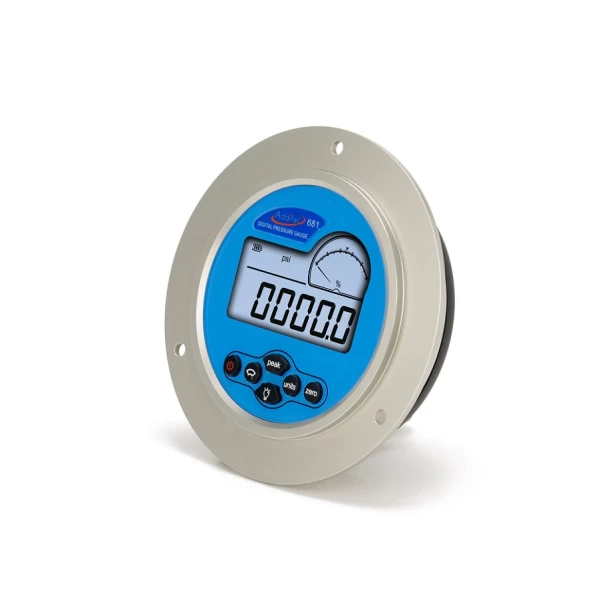

ADT681-PB-AP Digital Pressure Gauge – Absolute Pressure Panel Mount

ADT681-PB-AP Digital Pressure Gauge – Absolute Pressure Panel Mount

Streamline your gauge pressure measurements with our economical digital pressure gauge, offering reliability and precision without the hefty price tag.

SKU: ADT681-PB-AP

$1,442.00$2,338.00

Add to Quote

The Additel ADT681-PB panel mount digital absolute pressure gauges, provide an accurate, reliable and economical solution for a wide range of pressure applications. With accuracy choices of 0.2%, 0.1%, 0.05% of full scale and absolute pressure ranges to 35,000 kPa, there are options to meet all budgets and service requirements.

Front flange with rear process connection allows for easy mounting into panels and test benches.

The ADT681-PB digital pressure gauge is supplied with ISO17025 accredited calibration certificate. Zedflo is a NATA accredited facility and can provide accredited calibration for these products.

The ADT681-PB has options for measuring gauge, compound, absolute and barometric pressure.

View Direct Mount Versions

View Direct Mount Data Logging Versions

View Direct Mount IECEx Intrinsically Safe Versions

View Direct Mount IECEx Intrinsically Safe Data Logging Versions

View Panel Mount Data Logging Versions

  • Choice of accuracy levels 0.2%, 0.1%, 0.05% & 0.02% FS or 0.1% RDG
  • Pressure ranges to 35,000 kPa absolute
  • Suitable for gauge pressure, compound pressure & absolute pressure
  • Selectable engineering units
  • Large back-lit easy to read display
  • % pressure indication with fan shaped graph scale for visual reference
  • Display flash warning when pressure over 120% of FS
  • IECEx certified model available
  • ISO 17025 accredited calibration certificate included
  • Precision pressure measurement
  • Field gauge and switch calibration
  • Pressure safety valve (PSV) testing
  • Pressure regulator testing
  • Hydrotesting
  • Gas pressure testing
  • Pressure data logging
