MD 9226 Current Clamp

MD-9226 Current Clamp

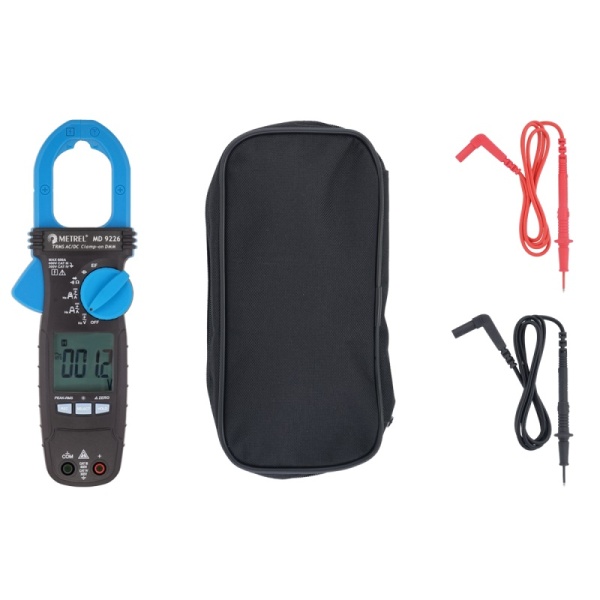

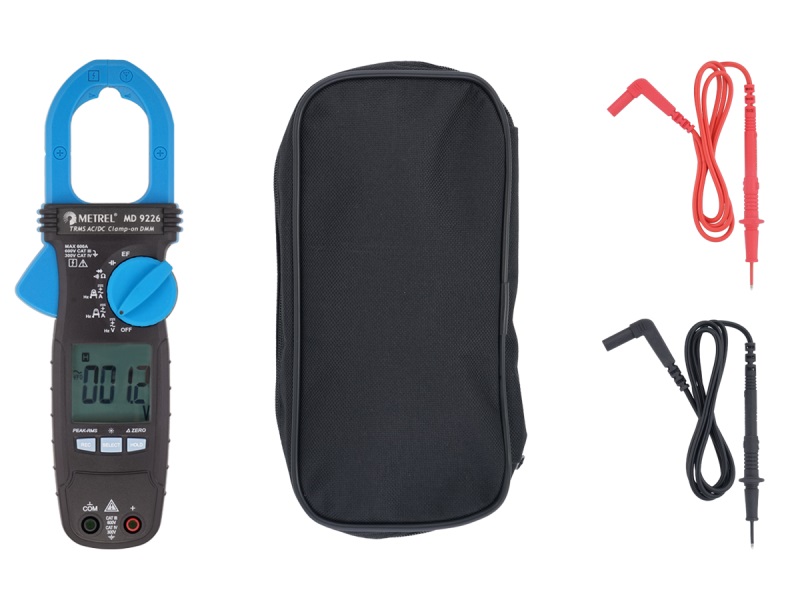

MD-9226 Set

MD 9226 Current Clamp

he Metrel MD 9226 is a professional DC and TRMS AC current clamp meter capable of measuring capacitance and frequency.

Typically ‘In stock’ subject to prior sales. Contact us to confirm stock level before ordering.
If nil stock at time of order, lead time is typically ~4 weeks.

SKU: MD-9226

$265.00 ex. GST

Add to Quote

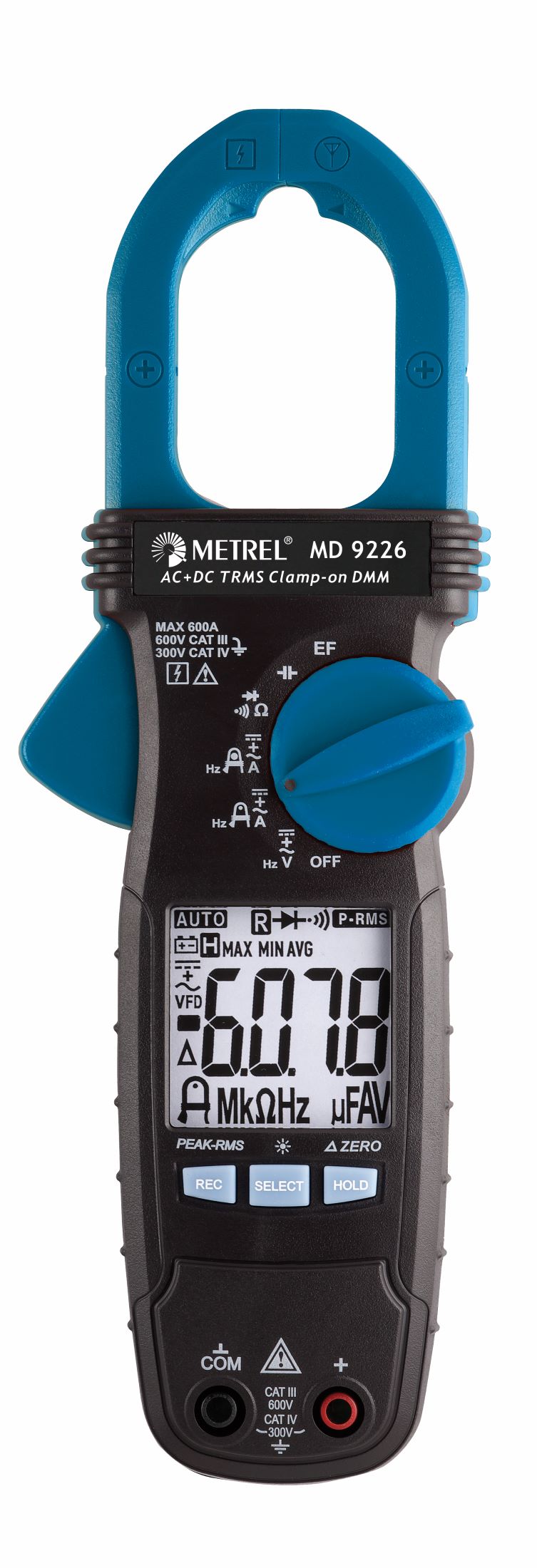

The MD 9226 is a professional DC and TRMS AC current clamp meter capable of measuring capacitance and frequency. It is equipped with a built-in VFD feature that makes the instrument capable of measuring the true values in accordance with frequency. The MD 9226 has a wide range of extra features, including peak value, data and MAX hold functions, auto power off, auto-ranging and a relative zero function. It uses state-of-the-art measurement technology and is housed in a sturdy industrial-grade case.



Measuring Functions

  • DC and TRMS AC voltage up to 600 V
  • TRMS AC current measurement up to 600 A
  • Resistance measurement
  • Acoustic continuity test
  • Diode test
  • Frequency measurement
  • Capacitance measurement
  • Temperature measurement
  • Auto-ranging
  • LCD display with backlight, 3-5/6 digit, 6000 count
  • Automatic, non-contact detection of electromagnetic fields to locate and trace live conductors
  • Data hold function
  • MIN/MAX/AVG function
  • Peak value
  • Relative zero
  • 35 mm jaw opening
  • CAT IV / 300 V, CAT III / 600 V overvoltage categories

Technical Specifications

Function Range Accuracy
DC Voltage 600.0 V ±(1.0% of reading + 5 digits)
AC Voltage (50 Hz … 60 Hz) 600.0 V ±(1.0% of reading + 5 digits)
DC+AC Voltage (DC, 50 Hz … 60 Hz) 600.0 V ±(1.2% of reading + 7 digits)
PEAK-rms (ACV & ACA) Response: 80 ms to > 90%
Audible Continuity Tester Audible Threshold: At between 10 Ω and 250 Ω. Response time: 32ms approx.
Ohm 600.0 Ω, 6.000 kΩ, 60.00 kΩ ±(1.0% of reading + 5 digits)
Capacitance 200.0 ΩF, 2500 ΩF ±(2.0% of reading + 4 digits)
Diode Tester 2.000 V ±(1.5% of reading + 5 digits)
AmpTipTM clamp-on ACA (50 Hz … 60 Hz) 60.00 A ±(1.5% of reading + 5 digits)
AmpTipTM clamp-on DCA 60.00 A ±(2.0% of reading + 5 digits)
AmpTipTM clamp-on DC+ACA (DC, 50 Hz … 60 Hz) 60.00 A ±(2.0% of reading + 7 digits)
Regular Clamp-on ACA (50 Hz … 400 Hz) 60.00 A … 600.0 A From ±(1.8% of reading + 5 digits) to
±(2.0% of reading + 5 digits)
Regular Clamp-on DCA 60.00 A … 600.0 A ±(2.0% of reading + 5 digits)
Regular Clamp-on DC+ACA (DC, 50 Hz … 400 Hz) 60.00 A … 600.0 A From ±(2.2% of reading + 7 digits) to
±(2.7% of reading + 7 digits)
Hz Line Level Frequency 5.00 Hz … 999.9 Hz ±(1.0% of reading + 5 digits)
Non-Contact EF-Detection 20 V … 440 V Tolerance: 10 V … 600 V
Detection Frequency 50/60 Hz
Transient Protection 6.0 kV (1.2/50 µs surge)
Overload Protections Current & Hz functions via jaws: 600 A DC/ A AC rms at < 400 Hz Other functions via terminals: 600 V DC / V AC rms
Power Supply 1.5 V AAA Size battery X 2
Power Consumption 13 mA
Dimension (L x W x H) 223 x 76 x 37 mm
Weight 234 g
Jaw opening & Conductor diameter 35 mm
