Delta aPAT Pro Print Pack PAT tester

Delta aPAT Pro Print Pack PAT tester

We are the Australian importer and do offer this tester via a dealer network Australia wide, so if you are not in WA we can put you in touch with the best local dealer who can provide you local sales and support, just send us an inquiry with address and we can let you know.


Typically In stock but quoted on application as we only will sell direct within WA. Please inquire for a quote.

SKU: Delta-aPAT-Pro-Print-Pack

$3,800.00 ex. GST

Add to Quote

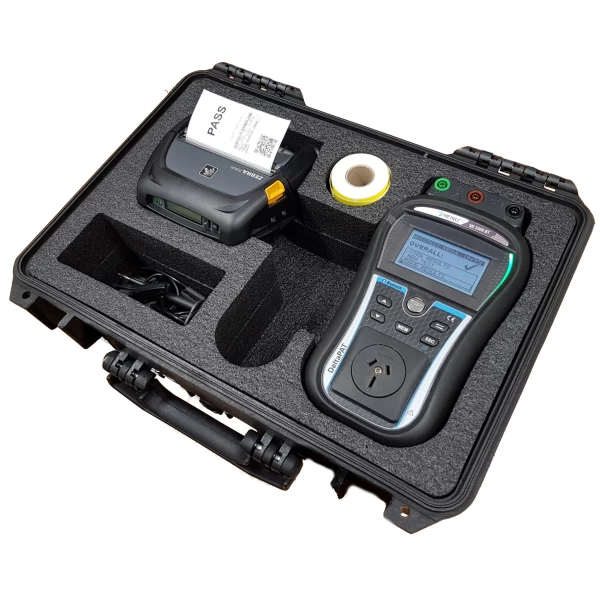

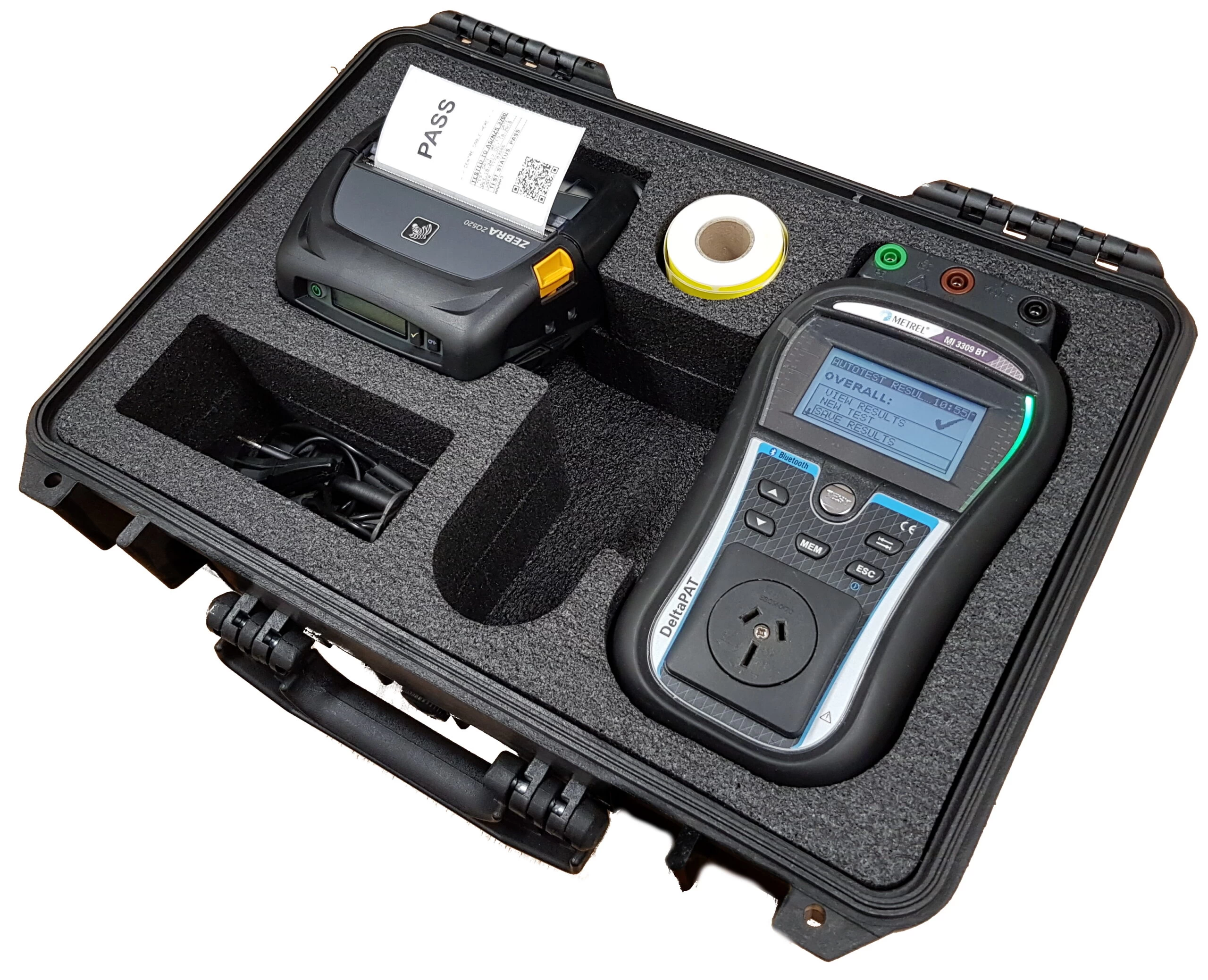

The Metrel Delta aPAT Pro Print Pack is an advanced PAT tester kit (portable appliance tester). This pack comes with a Metrel DeltaPAT 3309BT in addition to a Zebra ZQ521 for printing quality test tags with custom logos, as well as the advanced aPAT Android app for effortless data entry. It’s all contained in a purpose-built heavy-duty safe case. aPAT enables the user to quickly and simply manage the appliance tester data and also provides an overview of previously performed tests from scanning a QR code. The application lets the user generate test reports straight from the android app which can be immediately emailed or you can also send results to the main office before leaving test sites for further anaylsis or advanced reporting. Appliances can be quickly be re-tested using the tablets on-board camera as a QR code reader, the process of re-testing is as simple as scanning the existing test tag code and pressing start, so its very quick and efficient.

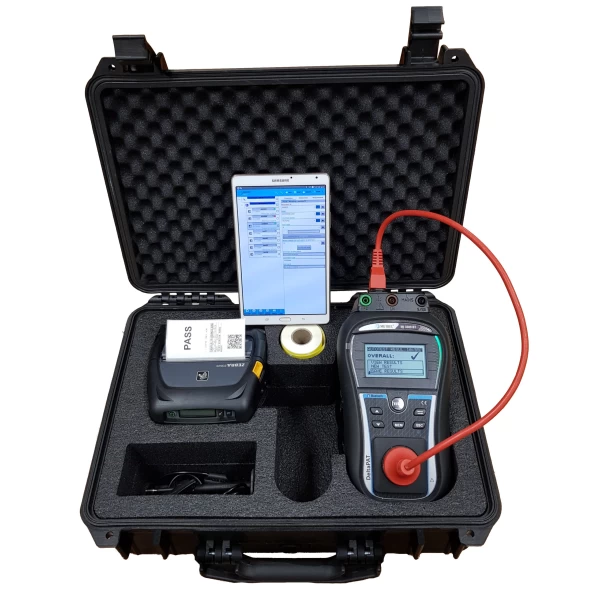

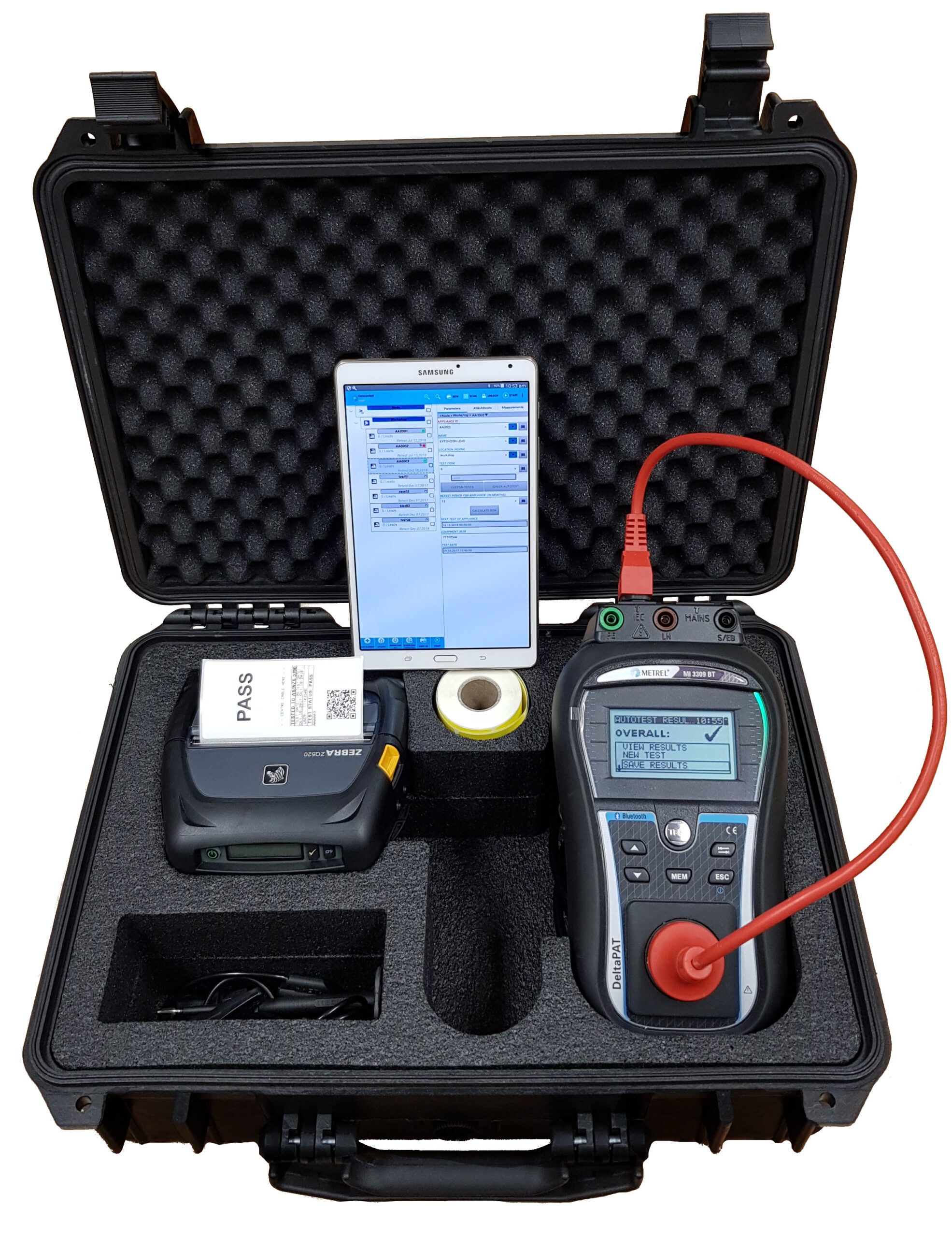

Tablet pictured is an optional extra, we can also provide the tablet and pre-configured the whole system ready for use. This is one of Australia’s most popular appliance tester kits due to its great value. In store demo in our Wangara (Perth) store is available if you would like to see the system in action.

Included in the set:

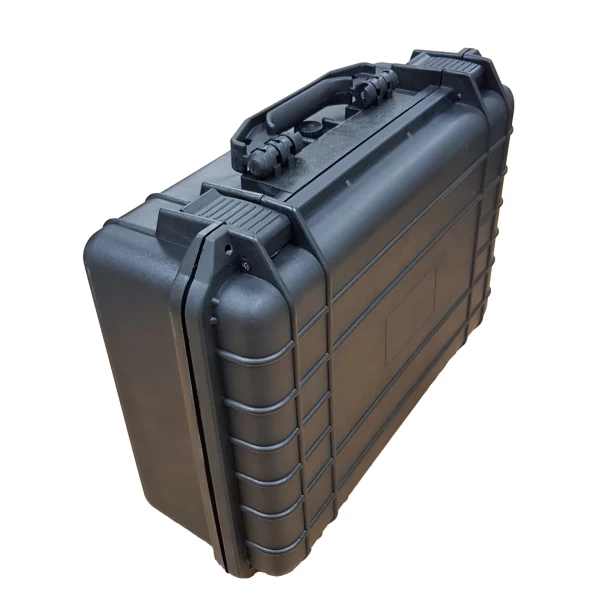

  • Heavy duty carry case
  • Custom foam with cut outs
  • Zebra ZQ521 Bluetooth printer
  • Instrument MI 3309 BT DeltaPAT
  • License for aPAT android app
  • IEC cable, 2m, black, 2 pc
  • Test lead, black, 1.5m
  • Test probe, black
  • Crocodile clip, black
  • PC software
  • RS232 cable
  • USB cable
  • Instruction manual/s
  • Delta calibration certificate
  • NiMH rechargeable batteries, type AA, 6 pcs

Note that an android phone or tablet is required. The aPAT android app is a “controller” for data entry and printing of test tags. If you have and android device already you can use it or we can also supply one and configure it complete with the set ready to use at additional cost.

KEY FEATURES

  • All the same key features of the tester itself can be found on the MI3309BT DeltaPAT page.

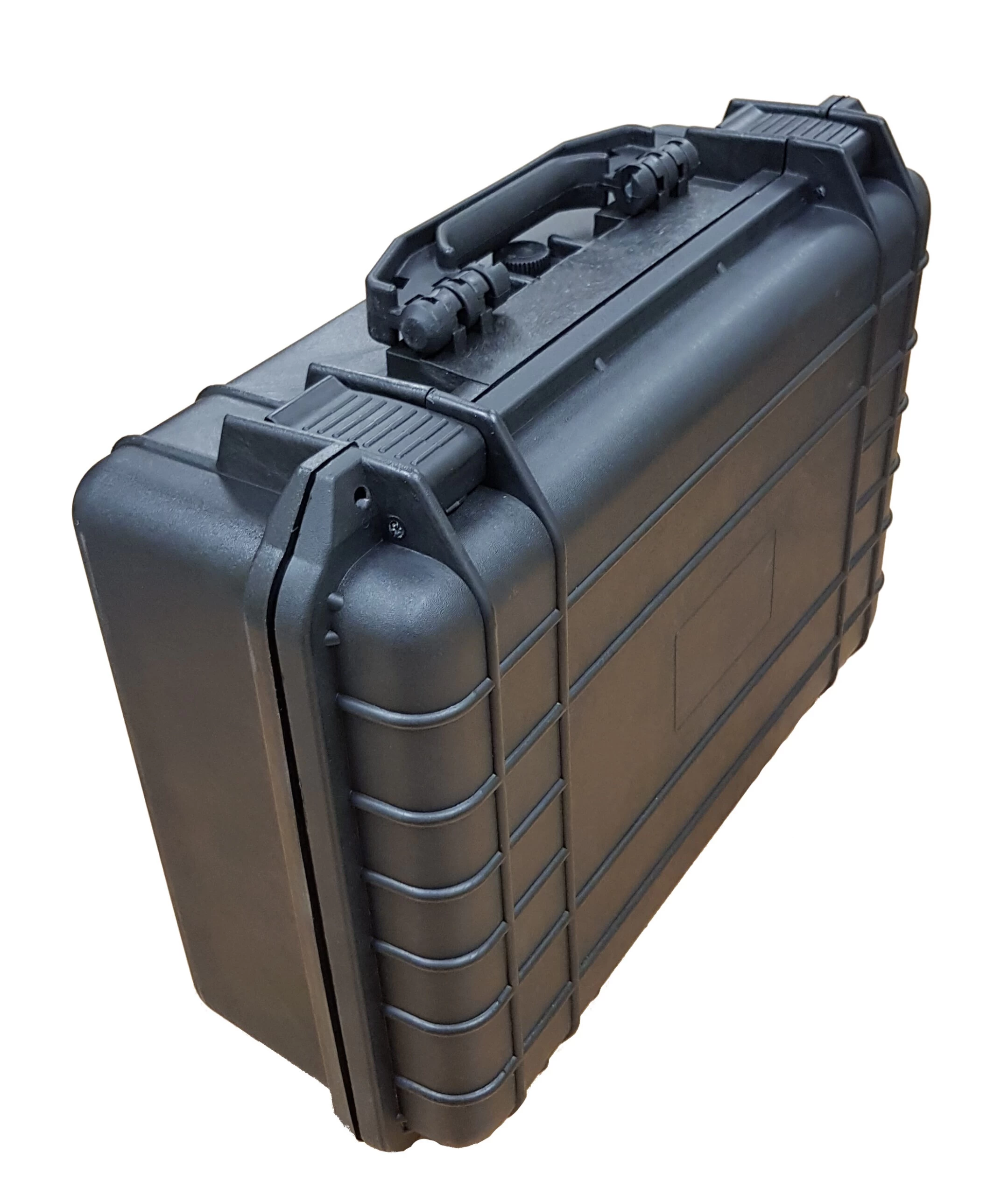

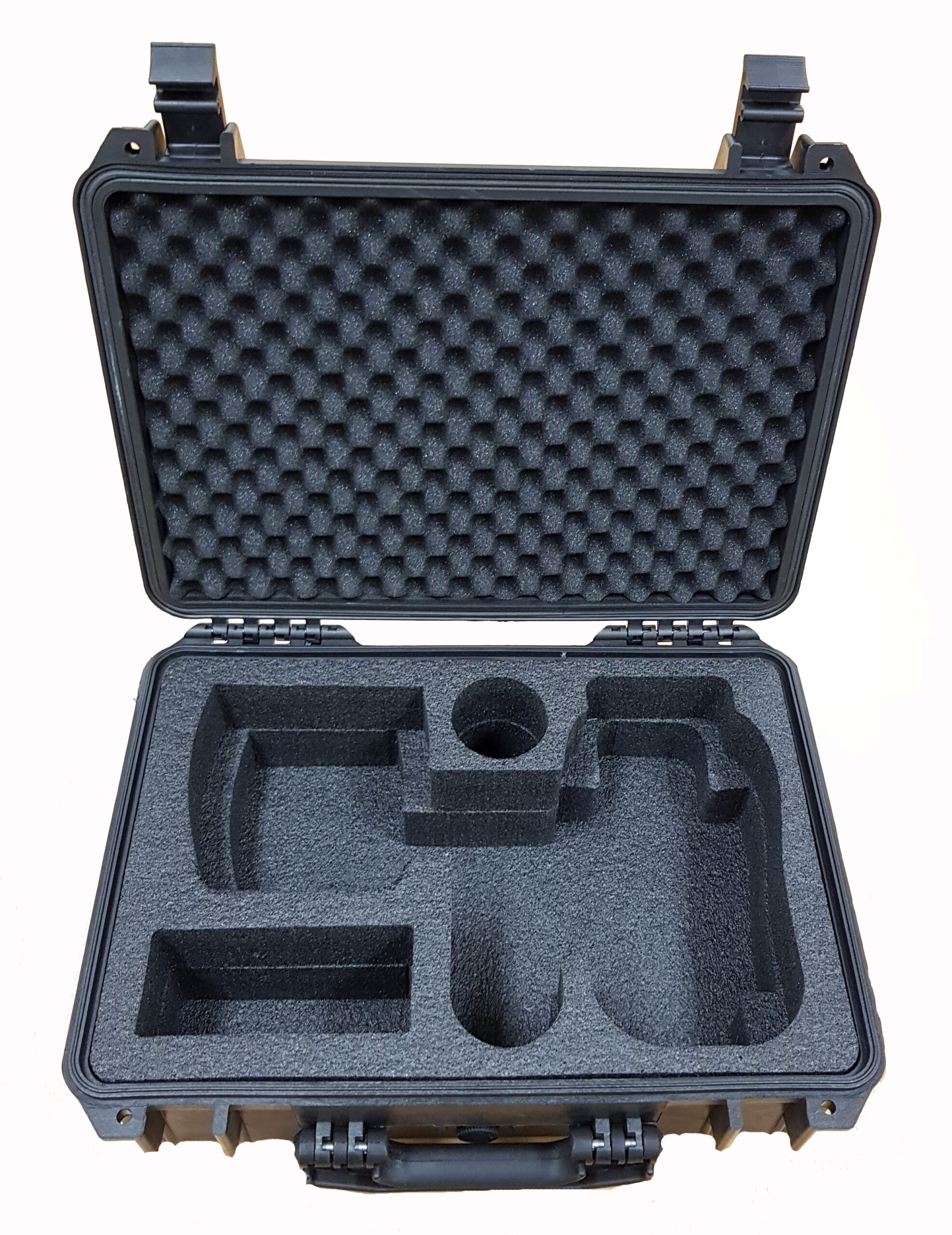

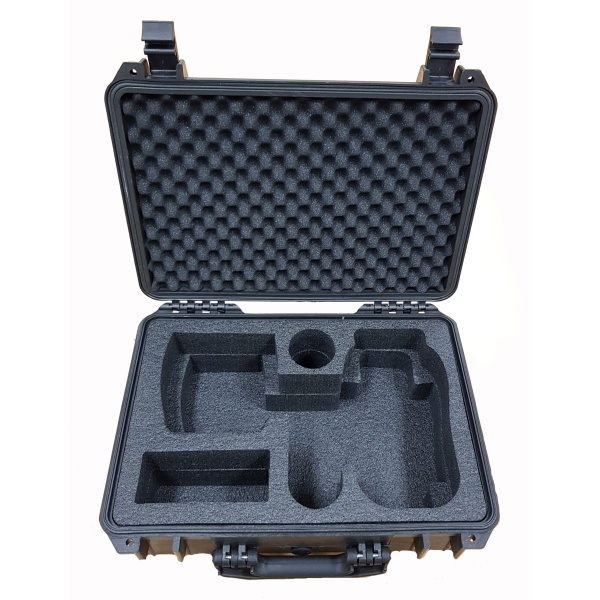

  • Smaller and lighter custom heavy-duty carry case (than the ‘complete kit’) with custom insert cut to fit perfectly.
  • All devices can work on either batteries or mains power
  • Metrel Delta 3309BT performs tests to AS/NZS 3760

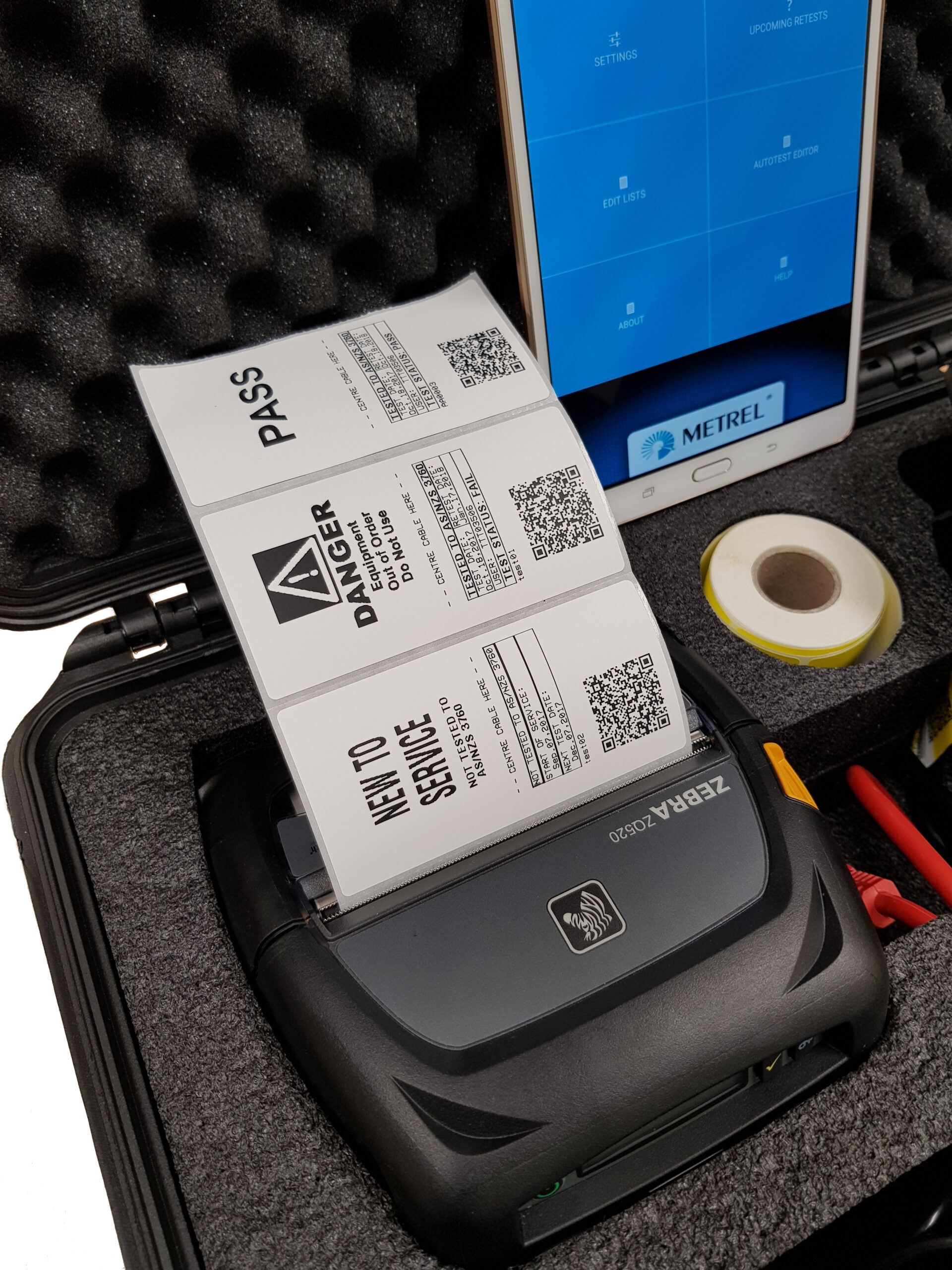

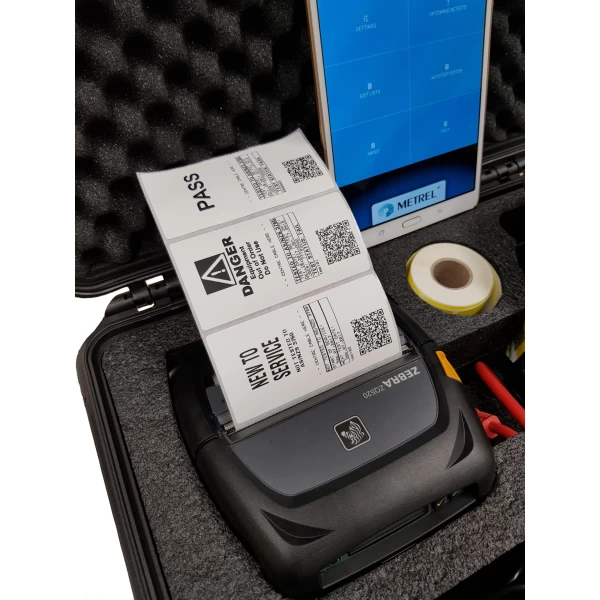

  • Zebra ZQ521 has internal Bluetooth and battery which allows printing of test tags, complete with test and retest date, custom logo and QR code for rapid retesting. This is a direct thermal printer with no need for ink/ribbons
  • aPAT android app (license included) allows for simple control of the whole system
  • 2 year warranty on tester and printer (otherwise 1 year)
  • We are the Australian importer and Metrel’s Australian authorised repair and calibration centre, rest assured knowing we offer excellent local support and in the unlikely event you have any issues we can resolve it here in-house meaning minimal down time for our customers.

aPAT ANDROID APP FEATURES

  • Complete database of tested appliances in one location
  • Upcoming retest warning within the app
  • Simple, custom auto-test creation and editing.
  • A full qwerty keyboard within the app and also enables the use of the camera for barcode/QR code scanner for quick data entry or retesting.
  • Remote control of portable appliance tester
  • Projects can be backed up to your drop box account, or emailed to the main office before leaving test site.
  • Simple to perform test by scanning the QR code containing all information for the specific appliance.
  • Custom logos easily changed and are user configurable

PRIMARY MEASURING FUNCTIONS

  • Visual inspections
  • Functional and visual inspection
  • Earth bond resistance (200mA)
  • Insulation resistance (250V & 500V)
  • Insulation resistance via probe (250V & 500V)
  • Substitute leakage current
  • Substitute leakage current via probe
  • Differential leakage current test
  • Touch leakage test
  • RCD and PRCD testing, type (K, S)
  • Power test
  • IEC cord polarity test
  • Leakage and load currents with current clamp
  • TRMS voltage meter

Be advised, some of these videos illustrate an older variant of this kit with a 'Zebra P4T' printer, that printer was discontinued by Zebra and so we now use the 'Zebra ZQ521' in this kit, other than that the same general premise still applies.
