121 Series Turret Case – Bottom Entry

turret case pressure gauge

121 Series Turret Case – Bottom Entry

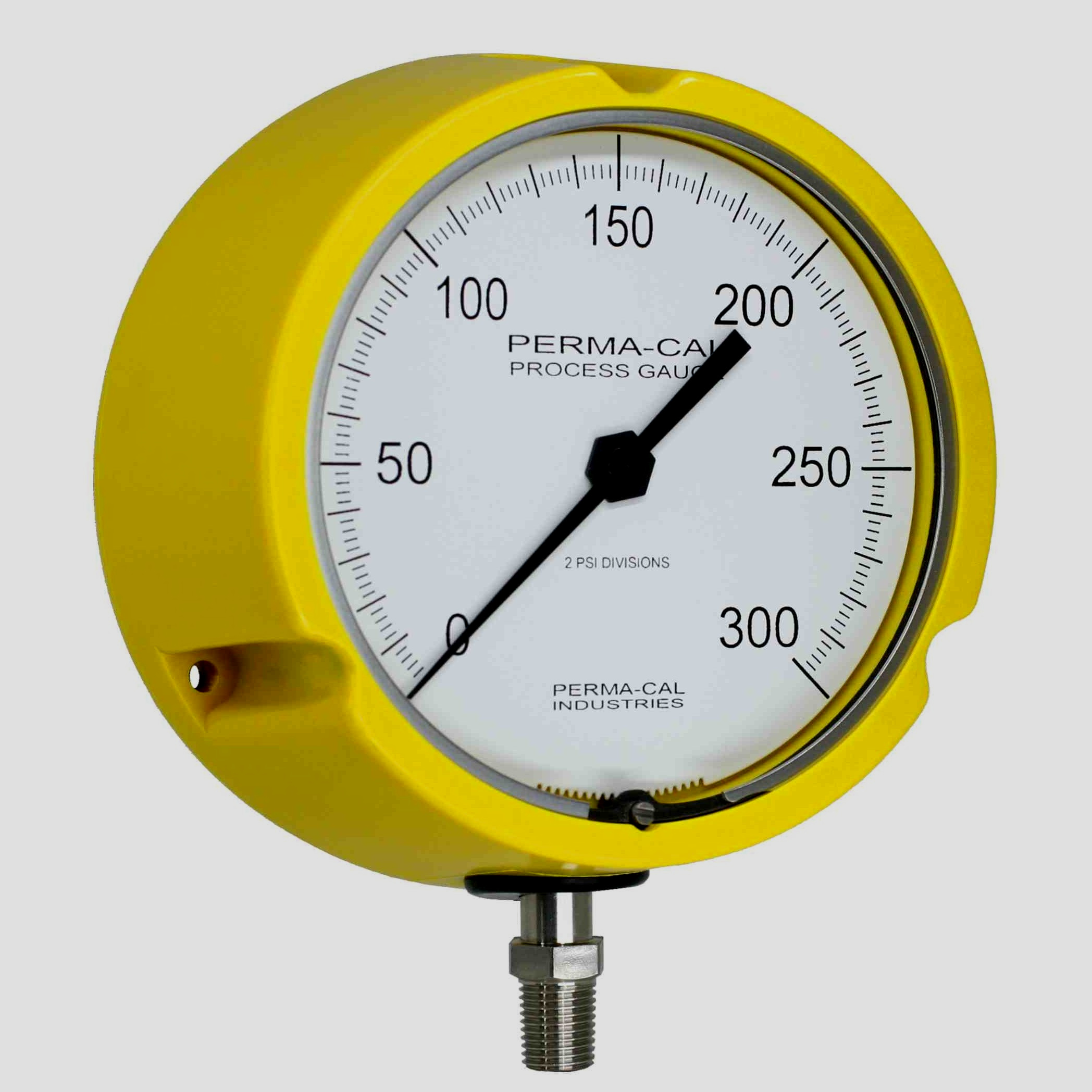

Permacal high performance bottom entry, turret case pressure gauges are robust and reliable designed for severe service applications

SKU: 121TIB

$345.00 – $396.00 ex. GST

Add to Quote

High Performance turret case pressure GAUGE, bottom ENTRY, Process Gauges

DESIGNED TO PERFORM ON ANY APPLICATION, HIGH QUALITY PERMACAL PRESSURE GAUGE



ADVANTAGES

  • ONE MOVING PART

Unmatched vibration, pulsation and shock performance.

Helical Bourdon Tube = Gearless, Direct Drive = DURABILITY

No linkages, springs, gears, or liquid fill to wear, break or leak. Unique, internal pointer dampening reduces pointer flutter without the negative consequences of liquid fill. Sanitary environment friendly.

  • OOPS! PROOF

Proof Pressure (over-pressure) of 150% F.S. exceeds industry standards.

Survives the day to day beatings of an industrial environment in addition to the accidental drop, channel lock tap or the surprise pothole. Additionally, where vacuum can sometimes damage a C-tube gauge, Direct Drive is unaffected.

  • AEROSPACE QUALITY | MILITARY TRUSTED

Direct Drive is demanded on critical applications.

The same military grade Direct Drive technology used in our Aerospace and Military designs, is used in our industrial gauges for commercial applications. Ideal for land, air, sea, and space.

The U.S. Military recognizes the durability advantages Direct Drive provides and requires it on their most demanding applications.

  • TEMPERATURE HERO

Trusted in extremes from -65°F up to 600°F media. Accuracy is 25% less affected by temperature fluctuations.

Inconel Elastic Element = Low Coefficient of Thermal Expansion

Inconel in combination with a low internal volume means that the impact of temperature on accuracy is significantly less than competitors using a Stainless Steel Bourdon Tube. High-Temp solutions available which bring operating temperatures up to 400°F Ambient / 600°F Media.

  • USA PARTS, USA MADE, USA OWNED

Manufactured in Minden, NV using only American made parts. Manufacturing processes not completed in house are outsourced to support local small businesses.

  • LIFETIME LIMITED WARRANTY

Lifetime warranty that the Bourdon tube will not malfunction due to wear.

1 year from delivery or 18 months from date of manufacture against defects in materials and workmanship.

ACCURACY

  • ±0.5% of F.S. (Grade 2A)

  • ±0.5% F.S. at M.S. / ±1.0% F.S.

For details see accuracy specs page

RANGE AVAILABILITY

  • Vacuum – 15,000 psi (or equivalent)

  • Units: psi, bar, kPa, MPa, kg/cm², inHg, mmHg

  • Types: Single or Dual Scale, Vacuum and Compound

Customization available (range, units, logo, etc.)

See dial availability chart for list of standard ranges

OPERATING TEMPERATURE

Media Temperature:

  • ABS: -65°F to 250°F

  • GFN and Metal: -65°F to 600°F

Ambient Temperature:

  • ABS: -65°F to 190°F

  • GFN and Metal: -65°F to 400°F

OTHER SPECIFICATIONS

Burst Pressure: 500% F.S. pressure or 25,000 psi

Proof Pressure (over-pressure w/o calibration shift):

  • 150% of F.S. for gauges ≤ 5,000 psi or equivalent

  • 125% of F.S. for gauges > 5,000 psi or equivalent

Internal pointer dampening (reduces pointer flutter)

CASE CONFIGURATIONS

Materials:

  • ABS (acrylonitrile butadiene styrene)

  • Aluminum

  • Stainless Steel

  • GFN (glass-filled nylon): High-Temp Yellow Turret

Sizes, Types and Colors:

  • 2.5″, 3.5″, 4.5″, 6″, 8.5″ Dial

  • Front Flange, No Flange, Rear Flange, Turret Style (this is for this particular page, but you can inquire about our other options)

  • Black, Blue, Green, Red, White, Yellow (others available, just contact us to discuss the options)

Metal Case Finish: Powder Coated or Unpainted

Solid Front Case Design

QUALITY MATERIALS

Wetted Parts:

  • Inconel X-750

  • 300-series SS

  • Silver Braze (nickel braze available)

Connection Material:

Window Construction:

  • Acrylic

  • Tempered Glass (increases heat tolerance)

Dial Construction:

  • Stainless Steel Material, Powder Coated Finish

  • White Background, Black Markings, Black Pointer

See Ray Series for high visibility dial

TYPICAL APPLICATIONS

Ideal for use on any application, especially those experiencing vibration, pulsation and shock.

  • Industrial, Energy & Power Plants

  • Wastewater Treatment Facilities

  • Pump Applications

  • Welding Gas Filling Stations

  • Steam Pipes

  • Oil & Gas Pipelines

  • Chemical Plants

  • Manufacturing Facilities

  • Refineries, and more…
