PNEUMATIC CALIBRATION PUMPS

We supply a variety of different pneumatic calibration pumps from leading international manufacturers Additel, Martel Electronics and East Hill Instruments to operators in a range of industries across Australia.

MORE ABOUT PNEUMATIC CALIBRATIONS PUMPS

Designed to calibrate all types of process control instrumentation, the comprehensive range of pneumatic calibration pumps we have in stock means we can supply the right variety of pneumatic hand pump to meet your precise needs.

THE ZEDFLO RANGE OF PNEUMATIC CALIBRATION PUMPS

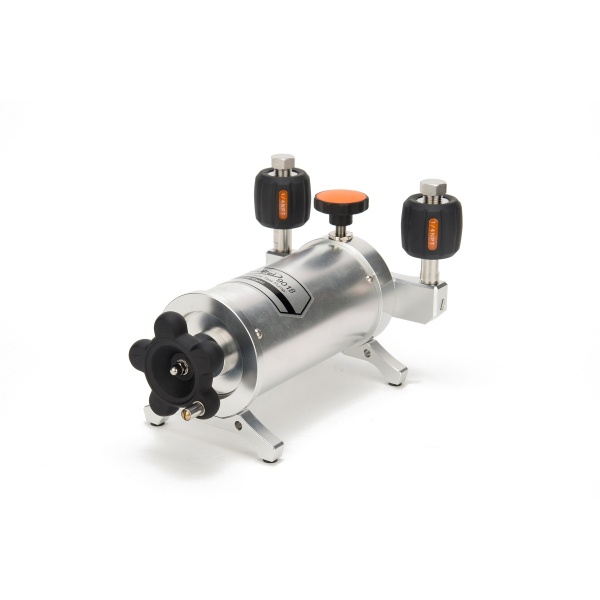

ADT 901 Low Pressure Volume Controller

This is a hand operated pressure pump by Additel which is designed to generate pressures from -6 psi (-0.4 bar) to 6 psi (0.4 bar). Offering stability and high resolution, it is low maintenance and features a unique bellows design that minimises leakage.

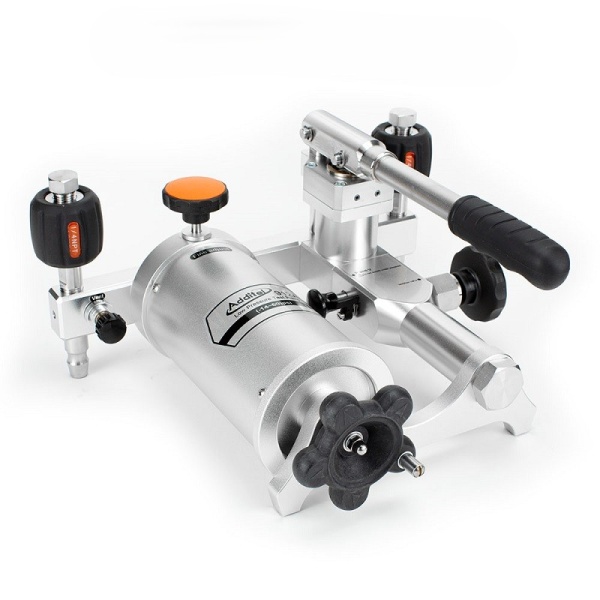

ADT 912 Low Pressure Volume Controller

The ADT 912 from Additel is designed to generate pressure from 95% vacuum to 60 psi (4 bar), and features a shut-off valve that stabilises pressure during calibration, while the bellows design minimises leakage. It also has a built-in gas-liquid isolator that protects the pump from moisture and dirt.

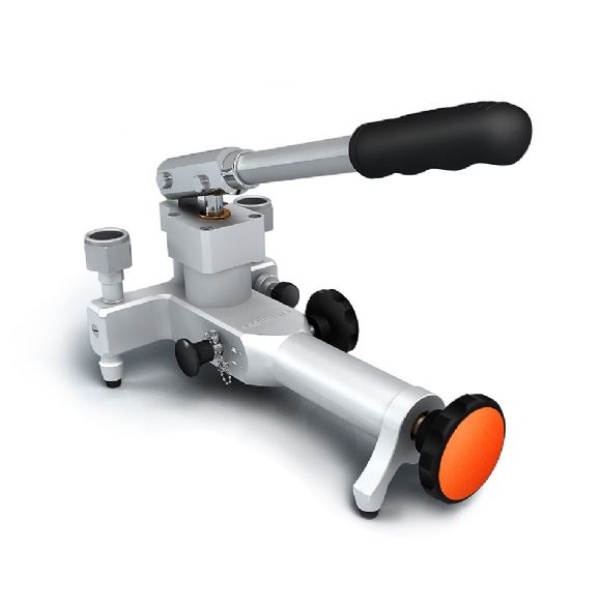

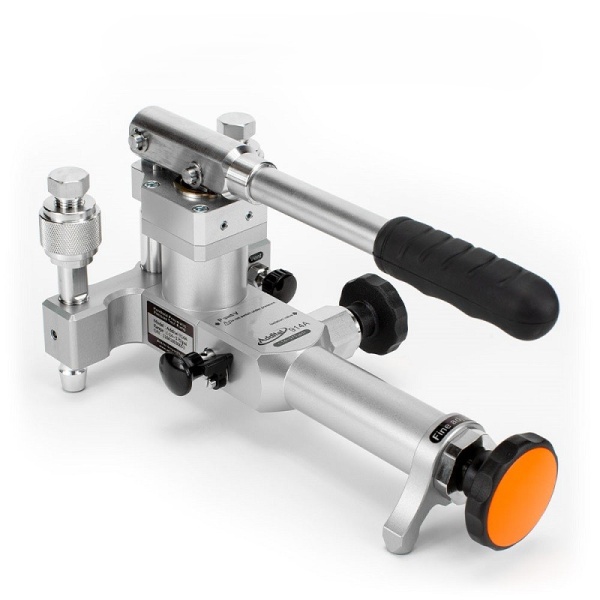

ADT 914 Pneumatic Hand Pump

The Additel 914A Pneumatic Pressure Test Pump generates pressure from 95% vacuum to 375 psi (25 bar), and features a shut-off valve to stabilise pressure during calibration, as well as two hand-tight connectors. Easy to use and portable, the 914A can be used to calibrate pressure gauges and transmitters, along with other pressure measuring instruments.

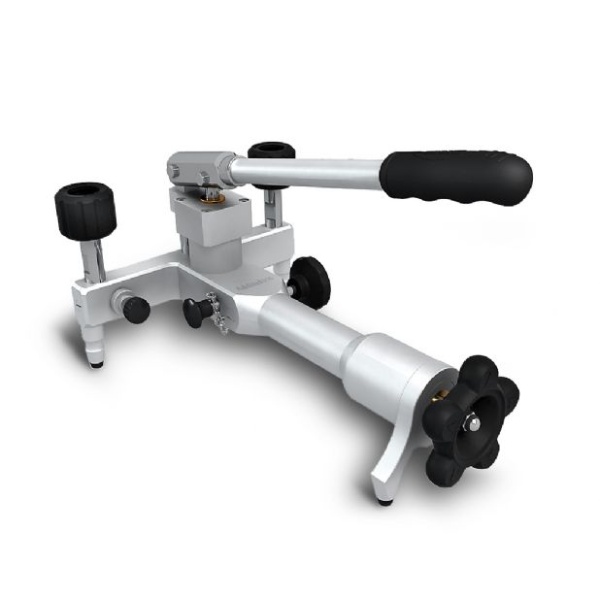

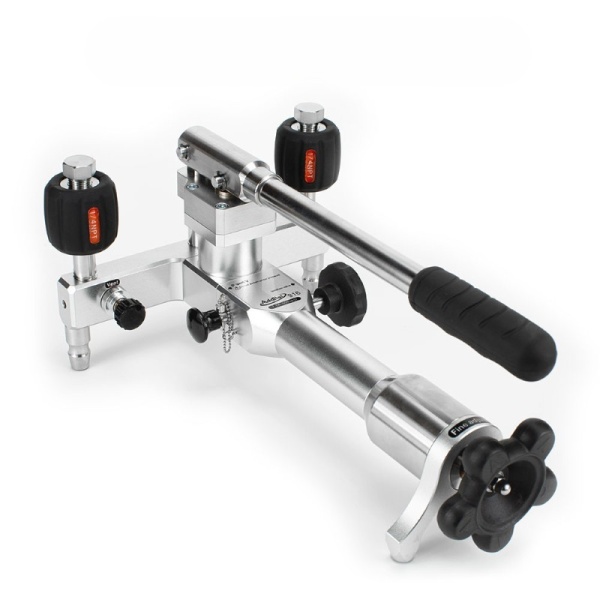

ADT 916 Pneumatic Hand Pump

The ADT 916 Pneumatic Pressure Test Pump from Additel is hand operated and can be used to generate pressure from 95% vacuum to 600psi (40bar). With high levels of stability and resolution, it features a vernier control that enables pressure to be fine-tuned with resolution up to 10 Pa.

ADT 917 Pneumatic Pressure Test Pump

Additel’s ADT 917 Pneumatic Pressure Test Pump generates pressure from 95% vacuum to 1,000 psi (70 bar). It is hand operated, lightweight and portable, with high resolution and a screw press that enables fine pressure adjustment up to 10 Pa (0.1 mbar).

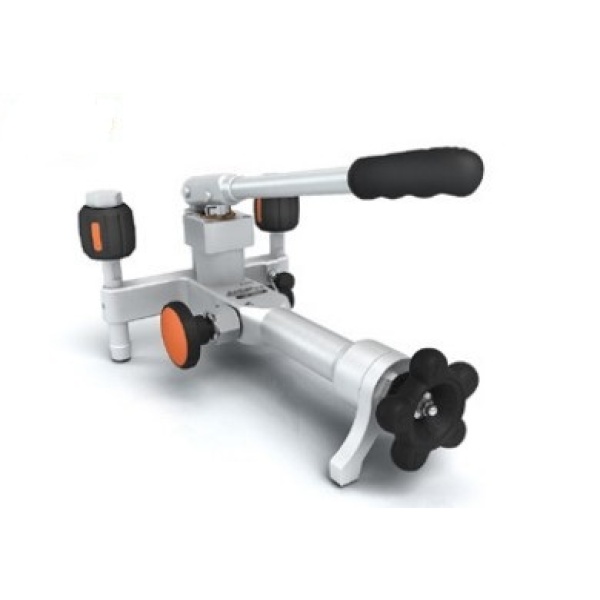

ADT 918 High Pressure Test Pump

The Additel ADT 918 High Pressure Test Pump is durable, provides low maintenance operation, and is easy to use. It is hand operated and generates pressure from 95% vacuum to 1,500 psi (100 bar). It features a shut-off valve and built-in gas-liquid isolator to protect the pump from moisture and dirt.

ADT 919A High Pressure Pneumatic Hand Pump

The ADT 919A High Pressure Pneumatic Hand Pump from Additel generates pressure from 95% vacuum to 2,000psi (140bar), and the long lever enables this to be achieved within just 30 seconds. It features two hand-tight connectors for quick and easy connection, while the vernier control allows pressure to be fine-tuned with resolution up to 10 Pa.

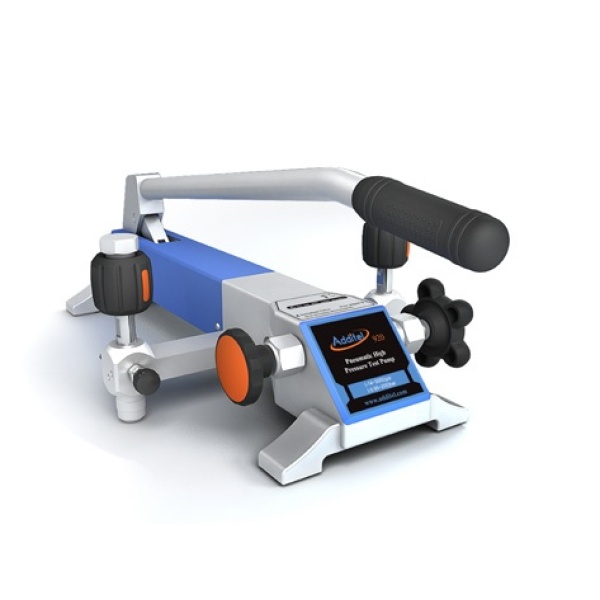

ADT 920 Pneumatic High Pressure Test Pump

Additel’s ADT 920 Pneumatic High Pressure Test Pump generates pressure from 95% vacuum to 3,000psi (200bar), and this can be reached in just 40 seconds thanks to the long lever. The screw press enables fine pressure adjustment up to a resolution of 10 Pa (0.1 mbar), while the shut-off valve produces stable pressure during calibration.

MECP100 Low Pressure Hand Pump

Martel’s MECP100 Low Pressure Hand Pump features a release valve for bleed control, along with a thermally isolated vernier to prevent heat transfer. It has a pressure range of -12 psi (-0.8 bar) to 100 psi (7 bar), and a maximum working pressure of 150 psi (10.3 bar).

MECP500 Pneumatic Hand Pump

The MECP500 Pneumatic Hand Pump from Martel Electronics is a hand operated pneumatic scissor pump that is lightweight and compact. It generates both pressure and vacuum (0-500 psi, 600 psi max., or vacuum 0-24″ Hg), and features a thermally isolated vernier that prevents heat transfer.

M-80 Magnum Low Pressure Volume Controller

The M80 Magnum Low Pressure Volume Controller series manufactured by East Hill Instruments provides excellent stability and resolution, and is bench mountable. The M-80KT, M-80CRY and M-80TH models all feature a portable handheld power drive, a spare rechargeable lithium battery, and a charger.

MP-V/MP-P Magnum Pro Low Pressure Hand Pump

The MP series of Magnum Pro Low Pressure Hand Pumps from East Hill Instruments features two models — the MP-V and the MP-P. With dual o-rings on all pistons there is no leakage, while the Schrader valve ensures durability and robust operation. The MP-V pump operates 0-28”HG vacuum, and the MP-P from 0-700 kPa.

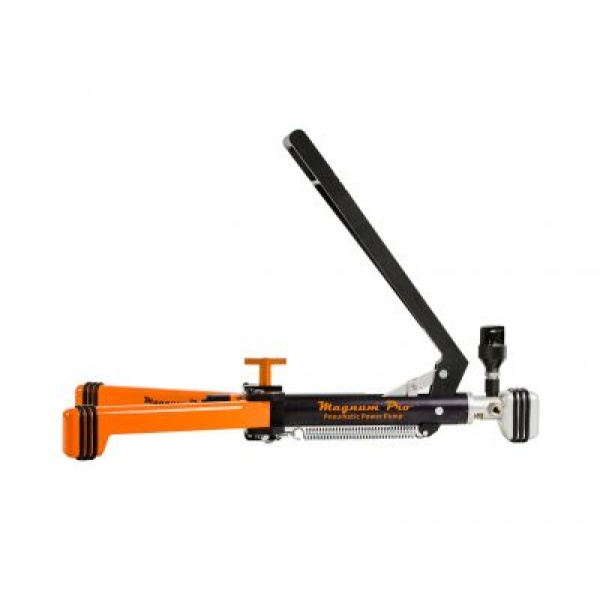

Magnum Pro MVP-600 Pneumatic Hand Pump

East Hill Instruments’ Magnum Pro MVP-600 Pneumatic Hand Pump has two connections (¼” and ⅛” NPT/BSP), and features a mash proof vent valve and dual o-rings on all pistons to prevent leakage. A non-oil based lubricant is used on all moving parts.

TALK TO ZEDFLO ABOUT PNEUMATIC CALIBRATIONS PUMPS ACROSS AUSTRALIA

Zedflo has one of Australia’s most comprehensive ranges of pneumatic calibration pumps, and our team is happy to help you choose the right one to meet your needs. Call us on 08 9302 1266 from anywhere in Australia, or email sales@zedflo.com.au to find out more.
