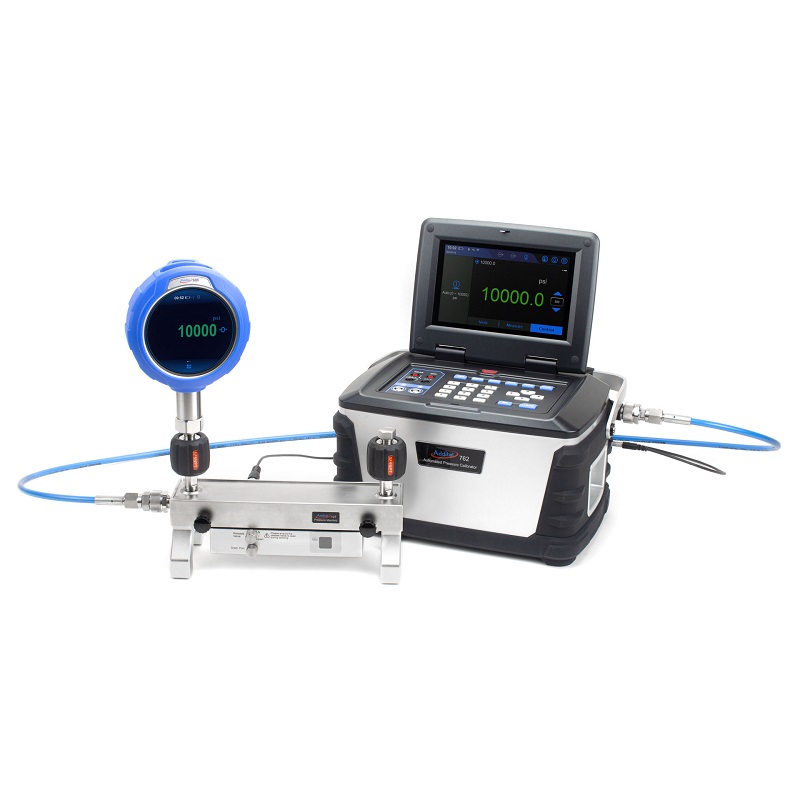

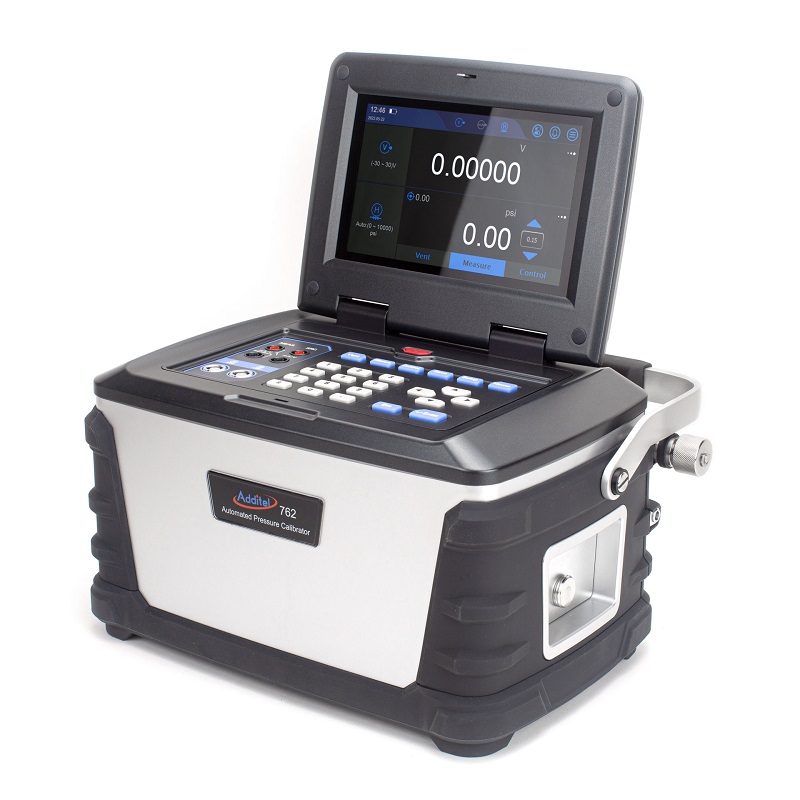

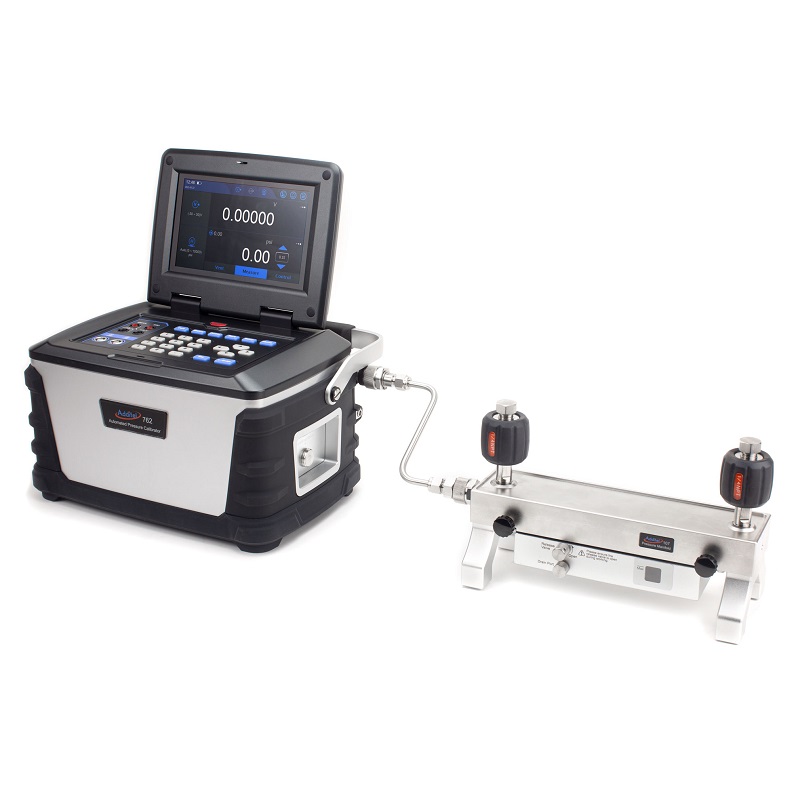

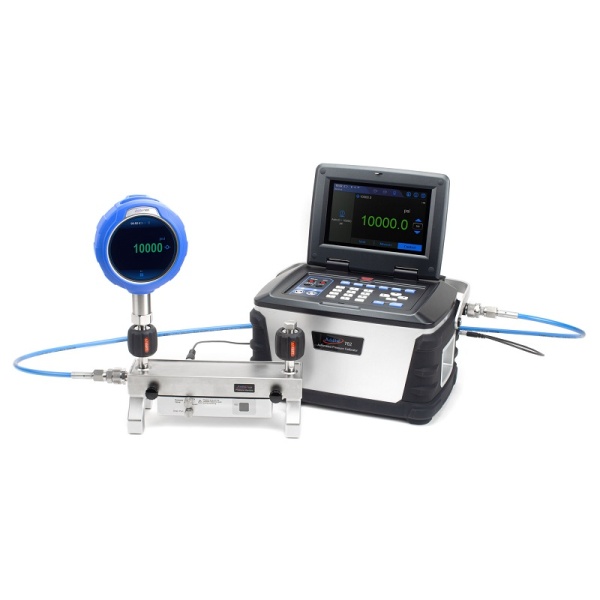

ADT762W Automatic Pressure Calibrator

ADT762W Automatic Pressure Calibrator

The ADT762 Automatic Pressure Calibrator, using water for calibration media, is unlike any other pressure calibrator on the market.  This revolutionary product is a portable solution for automation of pressure calibration work up to 70,000 kPa


Typically special order, inquire for current price and availability

SKU: ADT762W

$69,265.00$79,071.00 ex. GST

Add to Quote

The ADT762 automatic pressure calibrator is designed for use in both the field and the laboratory, the portability and accuracy of this state-of-the-art product will quickly become the favorite go-to calibrator for lab personnel and field technicians alike.

With fully automated support for calibration of pressure transmitters, switches, dial and digital gauges and sensors, including HART/PROFIBUS devices in conjunction with a fully integrated task feature, data collection and Wi-Fi connectivity, we had our customer’s needs in mind when designing our most capable pressure calibrator to date.

  • Automatic pressure generation and control to 70,000 kPa
  • Accuracy options of 0.01% FS or 0.02% FS
  • Dual range calibration
  • Designed for use with water
  • Control stability to 0.005% FS
  • Portable – designed for use in field or lab
  • Control via internal or external pressure modules (expands range)
  • Supports two external pressure modules
  • Wi-Fi, Lan, Bluetooth, USB and Ethernet communications
  • Full HART field communicator with updateable DD files
  • HART and Profibus communication
  • Data logging and task management
  • Patented electric pump technology
  • ISO17025 accredited calibration with data included
