PU220A Brass Solenoid Valve, Assisted lift (2/2 way)

PU220 Brass Solenoid Valve

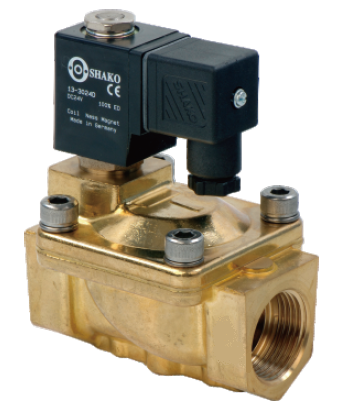

PU220A Brass Solenoid Valve, Assisted lift (2/2 way)

Discover the economical Shako PU220A series, a 2/2 way Brass Solenoid Valve with assisted lift. Available in 3/8″, 1/2″, 3/4″, and 1″ port sizes with BSP/NPT options. We stock various versions and can special order to meet your specifications. Contact us for a quote tailored to your needs.

Economical Shako PU220A series, 2/2 way Brass Solenoid valve, Assisted lift, Available in 3/8″, 1/2″, 3/4″, and 1″ port sizes with BSP/NPT options

We do stock several different variations of this product, and can special order others that are not in stock. Please let us know your required spec and we can quote accordingly.

SKU: PU220A

$118.00 ex. GST

Add to Quote

PU220A series

2/2 way Brass Solenoid valve, Assisted lift

Available in 3/8″, 1/2″, 3/4″, and 1″ port sizes with BSP or NPT options.





  • Quick response
  • Stainless steel stem provides exceptional durability.
  • Flange type is available for JIS 10K, ANSI 150LB and PN16.
  • Ex-proof coil T4 as optional accessory.
  • Timer for setting on/off time as optional accessory.
  • CE conformity for all series.
  • Coil nut is available, please refer to page 7-6.

Please see the datasheet in the downloads tab for full specifications

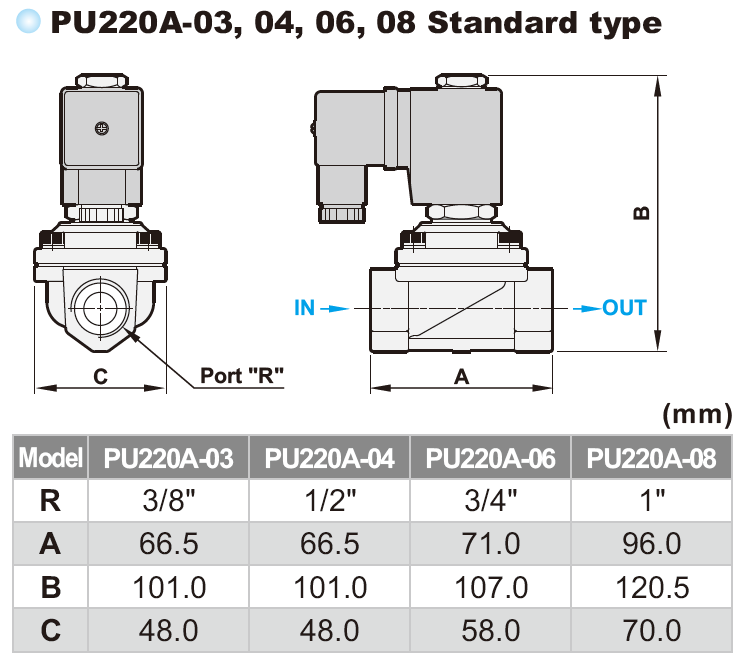

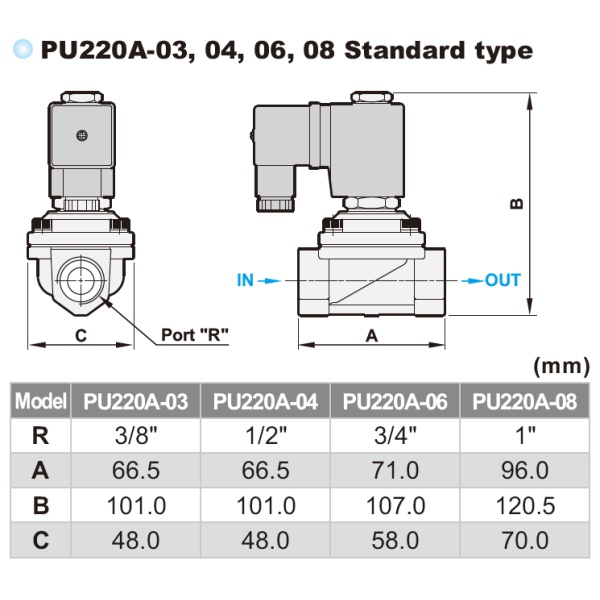

Model PU220A-03 PU220A-04 PU220A-06 PU220A-08
Port size 3/8″ 1/2″ 3/4″ 1″
Fluid Compressed air (light oil, water)
Orifice 13mm 13mm 20mm 25mm
Sectional area 76mm2 76mm2 162mm2 220mm2
Acting Assisted lift
Construction Diaphragm
Operating pressure range AC 0 ~ 7 kgf/cm2
Operating pressure range DC 0 ~ 6 kgf/cm2 0 ~ 5 kgf/cm2
Proof pressure 10 kgf/cm2
Body material / Flange material Forged Brass / Steel
Fluid temperature -10°c ~ 90°c
Ambient temperature -10°c ~ 60°c
Installation Horizontal
Duty cycle 100% ED
Coil type DIN
Protection class IP65 (DIN 40 050)
Insulation class F
Voltage tolerance +/- 10%
Standard voltage 240VAC, 110VAC, 24VAC, 48VDC, 24VDC, 12VDC
Power consumption AC110V:17.6VA, AC220V:18.1VA, DC: 15W
Net weight 740g 740g 945g 1485g

PU220A Brass
