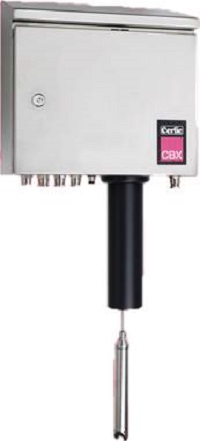

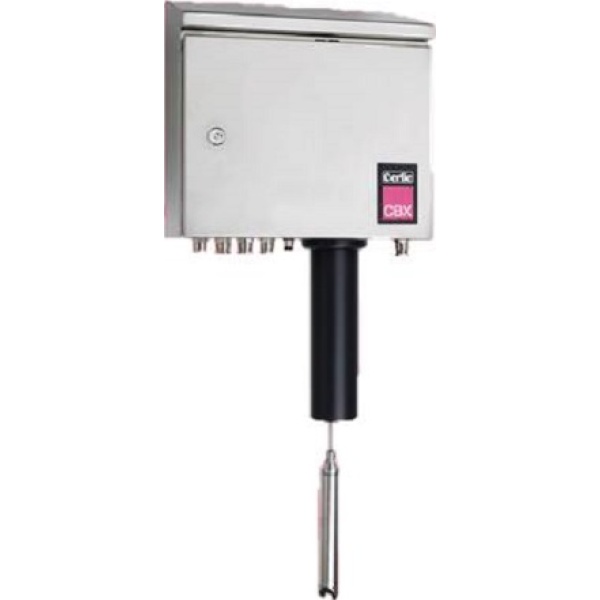

Cerlic CBX & CBX Plus sludge blanket level & profile sensor

Cerlic CBX & CBX Plus sludge blanket level & profile sensor

SKU: ZFL-PRO-1462

$0.00

Add to Quote

The Cerlic CBX range of sludge blanket level & profile sensors allow for reliable measuring of suspended solids in liquids. Built with stainless-steel, with an included fan and heater, the CBX can be used in temperatures as low as -20°C. With automatic water flushing, 11m cable and new non-contact power supply, the CBX and CBX Plus are at the forefront of wastewater technology.



  • Combines NIR suspended solids sensor with accurate depth measurement to provide sludge blanket profile
  • Analogue outputs for: sludge blanket level, fluff (unsettled sludge) level, real-time TSS concentration & real-time sensor depth
  • 4-20mA or Profibus DP output (optional)
  • Completely self-cleaning
  • Two models:
    • CBX: range up to 2% TSS
    • CBX Plus: range up to 5% TSS
